SimpleGlaze- Frameless Glass Track- Anodised Aluminum

Our SimpleGlaze Frame Glass Track System is the simplest system on the market specifically targeted for the end domestic user. All prices shown include VAT & Free delivery.

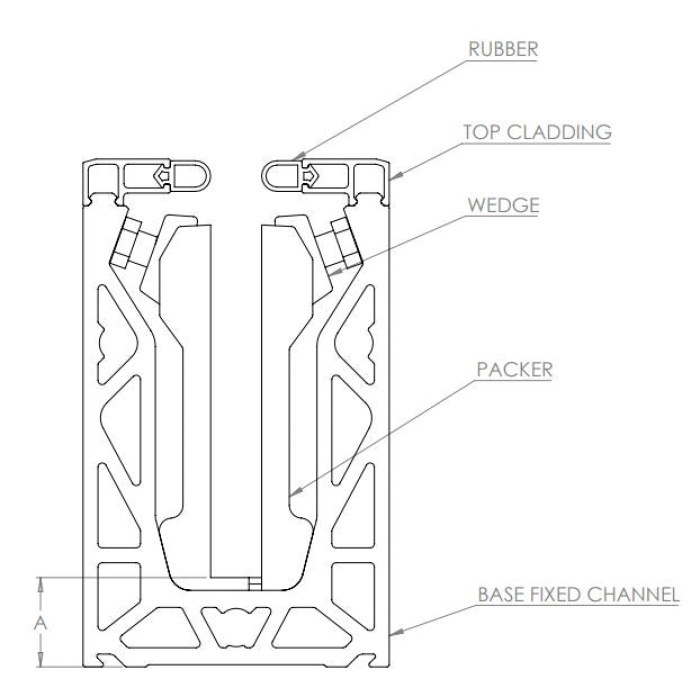

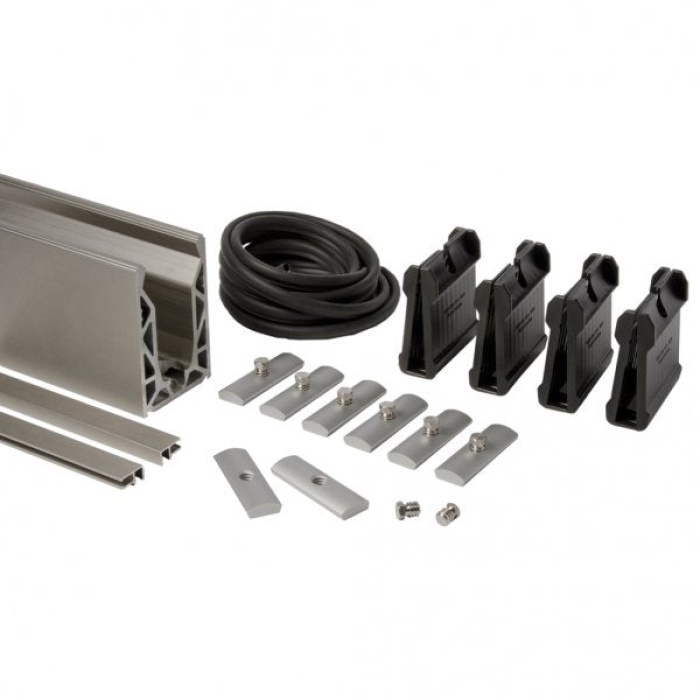

All our glass track options come complete with;

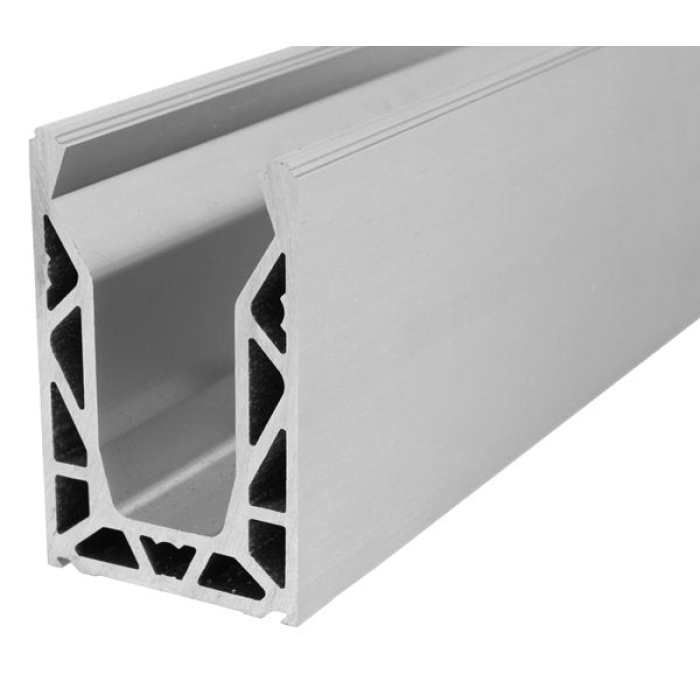

• 1 x Aluminium channel in a stunning anodised satin finish.
• 2 x Top cladding
• 2 x rubber gasket seals
• 4 x clamps per metre

All track comes cut to your required length with fast delivery available for 3m and 6m options.

As the track is Aluminium which is then anodised it is suitable for any application whether it is near the coast or on your landing.

The track comes with various rubber options which allow for many of the standard glass thicknesses which we also offer direct to your door.

If you are after a bespoke length, then please order the size above off the drop down menu and then contact us via phone or email.

Note- We do not supply base fixings as we cant foresee every fixing scenario.The structural design is the responsibility of the customer.

We have an inhouse design team so if you are after a complete project from us then please get in touch. SimpleGlaze balustrade system can with hold the following loads based on BS 6180 and it recommended the correct thickness of glass is used when choosing your product. These test results are based on having a top handrail of 42.4mm. BS 6180 should be adhered too with any drop over 600mm. Which means 12mm glass isnt recommended where a fall of 600mm is to be protected.

15mm Toughened Glass- 0.74 Horizontal U.D.L. Kn/M

19mm Toughened Glass-data-mce- fragment=”1″>U.D.L. Kn/M

21.5mm Toughened Laminated Glass EVA Interlayer-

21.5mm Toughened Laminated Glass Rigid Interlayer- 1.5U.D.L. Kn/M

All Handrails, End Caps, Fixing Tools & Glass Are Listed On Our Website Under Frameless Balustrade.

Disclaimer

It would fall with the customer to check with the local authority that planning permission is/ isnt required and also ensure that all projects are carried out to British Standard BS 6399 BS 6180 and meet the required loads.

SimpleHandrails.co.uk take no responsibility for any structural requirements and this is the clients responsibility.
